CH2015 Intelligent High Speed USB Programmer+QFP44 adapter for mega8 mega48 mega64 mega8515 mega32u4


Support Alipay/WeChatPay/PayPal/Bank Transfer to buy

SKU: N/A Category:

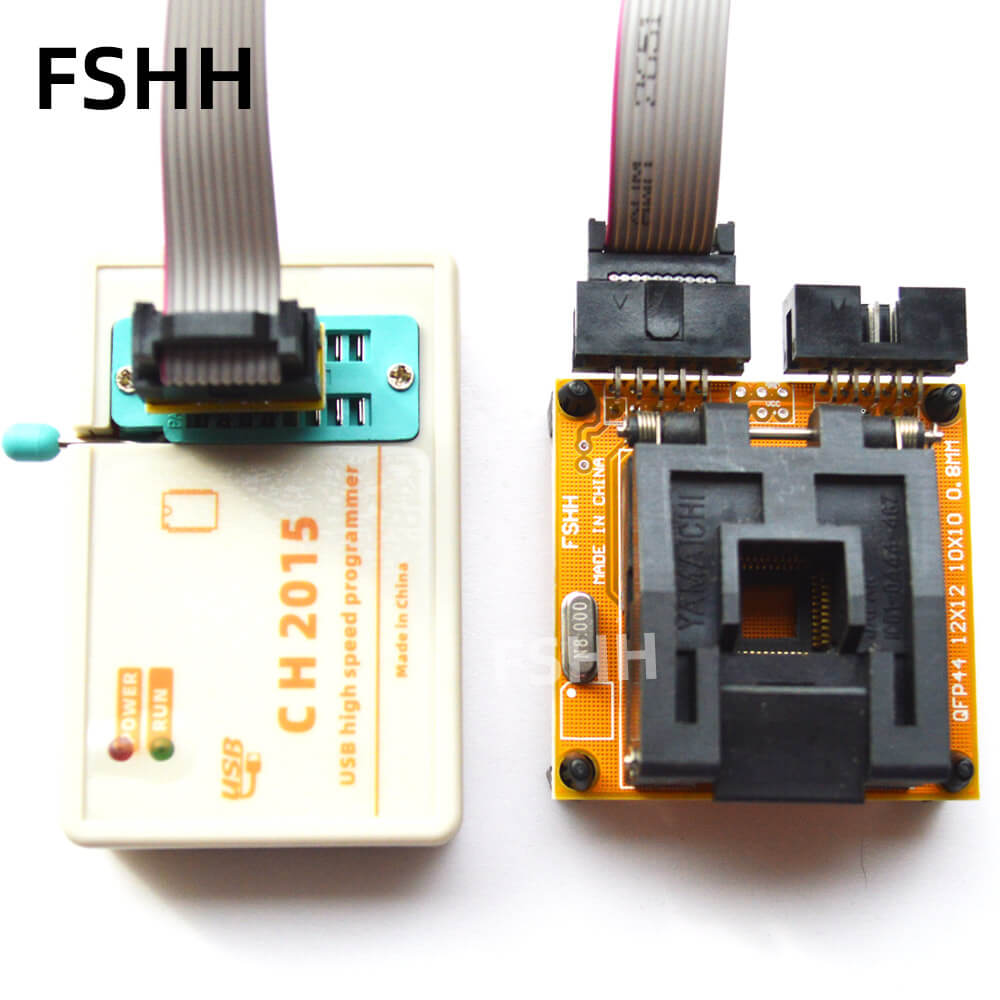

CH2015 Intelligent High Speed USB Programmer
One bright spot: the ARM 32-bit kernel, faster and more stable!
Highlights II: Support massive chip: 24 25 93EEPROM, SPI FLASH, AVR MCU chip, DATA FLASH chip! Constantly updated, and strive to be more perfect!
Highlight three: support SPI FLASH, AVR chips, DATA FLASH chip models automatically recognize!
Highlights four: Support 24,93EEPROM chip offline copy!
Highlights 5: Software perfect support XP/ WIN7/WIN8 32-bit and 64-bit/WIN8.1/WIN10 systems!
Highlights 6: original and efficient production features! Highest delayed 16 batches rush a good helper!
Highlights 7: friendly buffer edit window can also customize the automatic programming process steps!
Highlights eight: Support sector programming, greatly enhance the work efficiency!

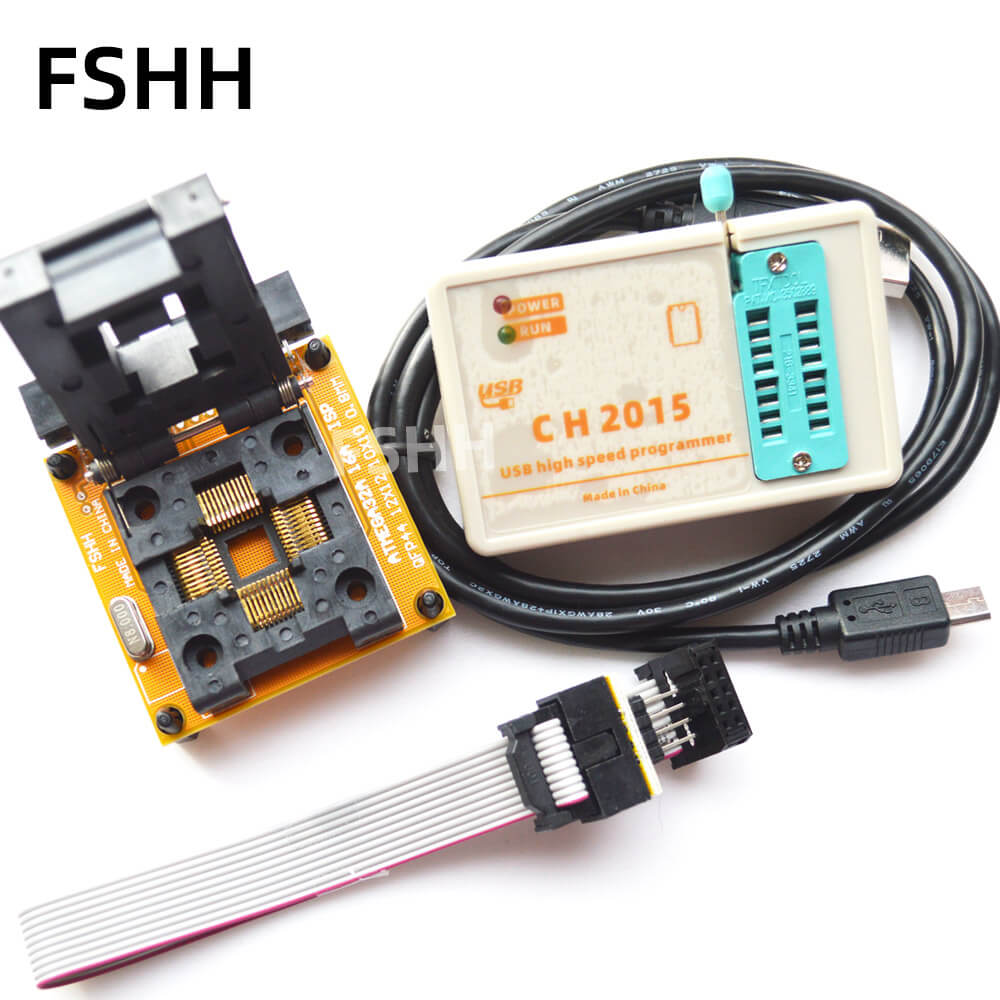

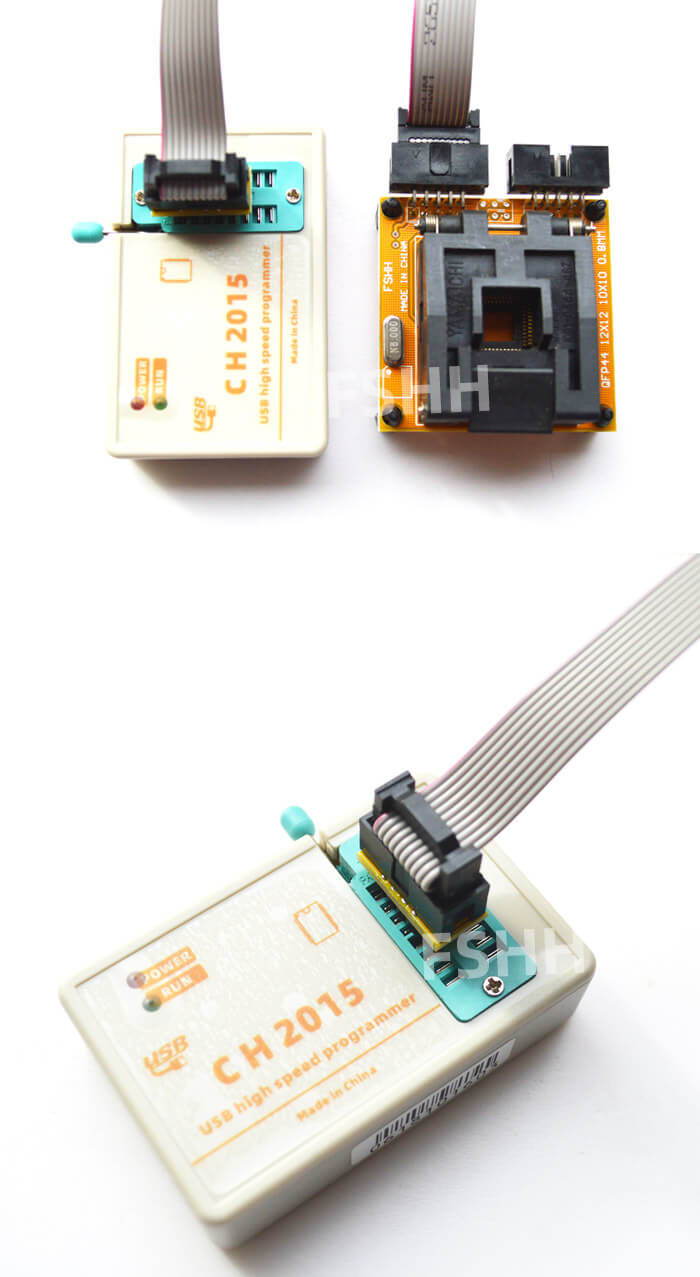

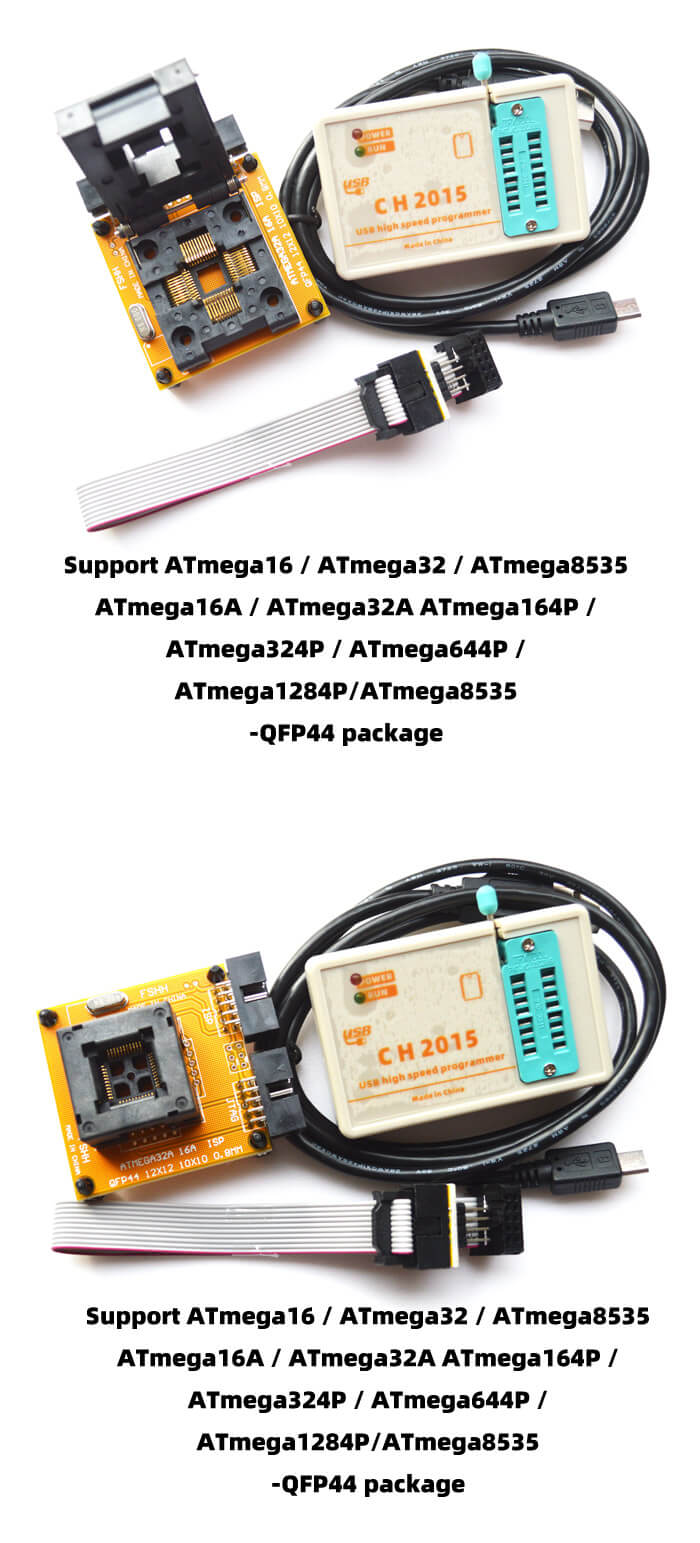

Delivery content:

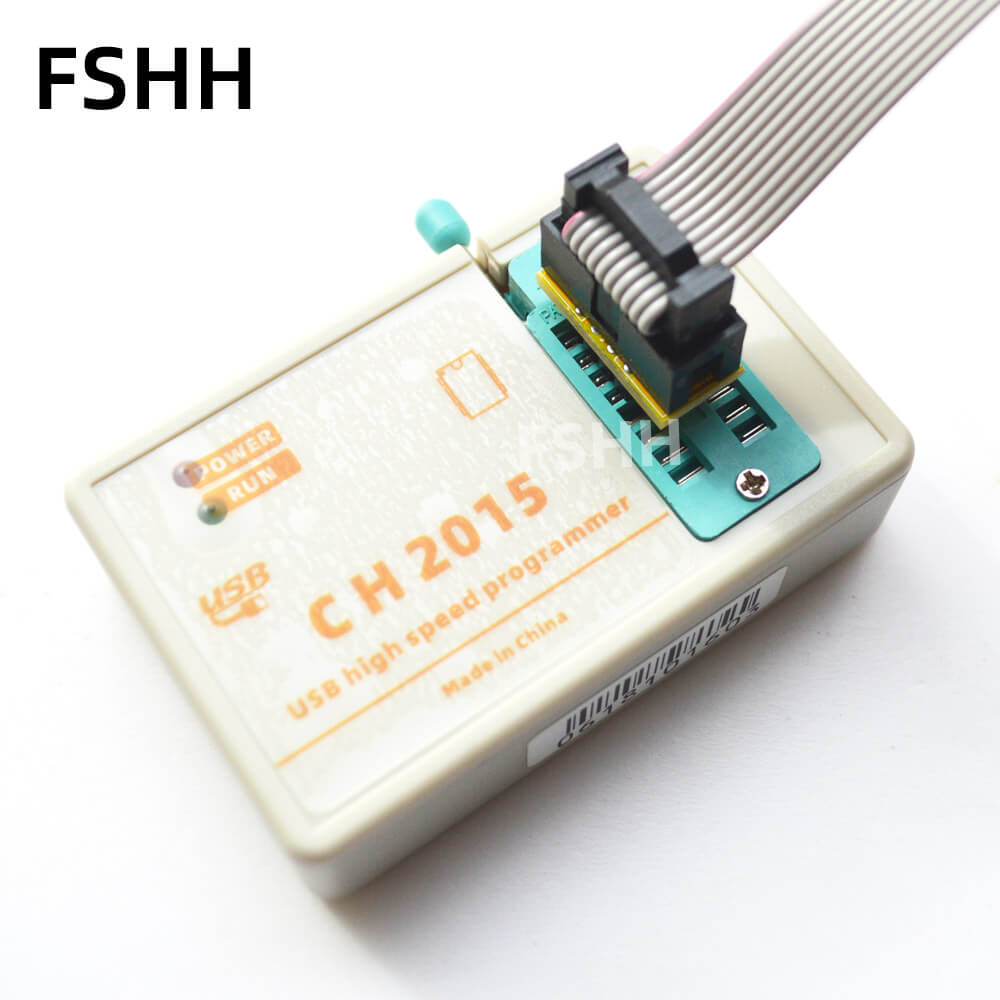

CH2015 USB programmer X1

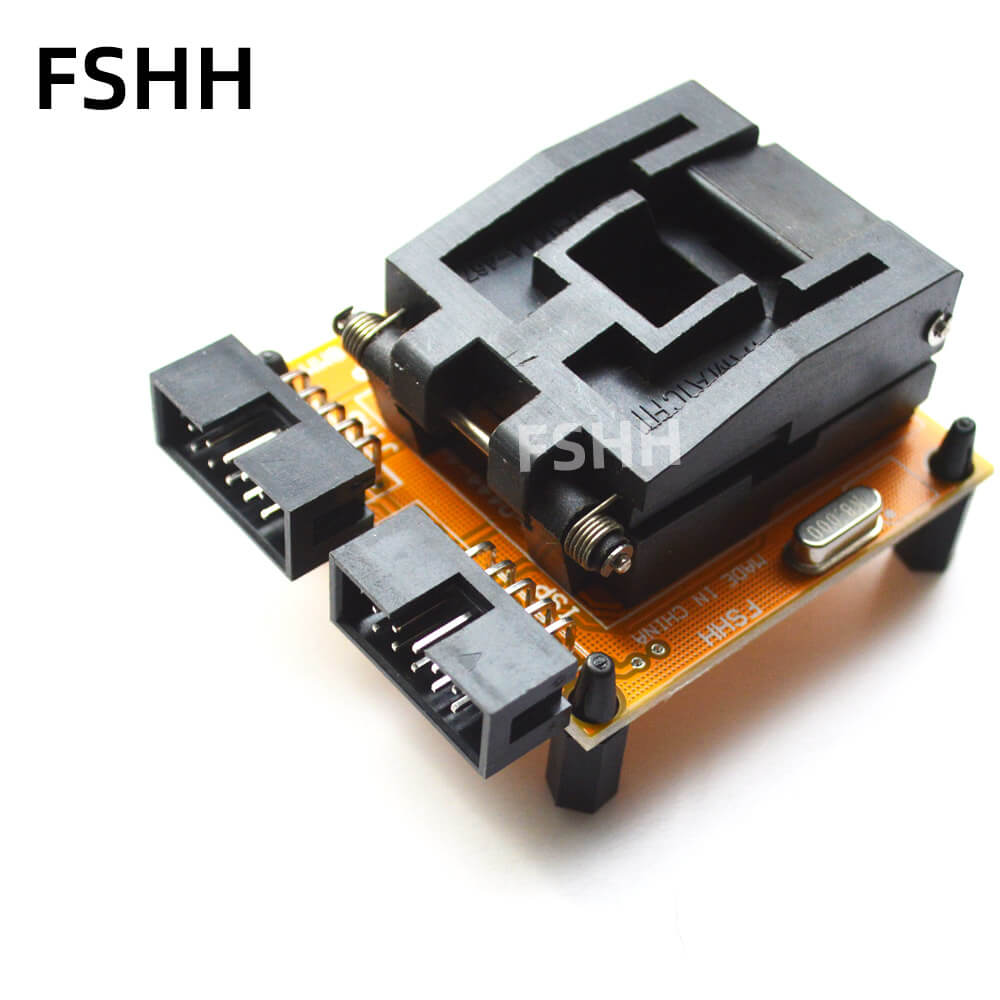

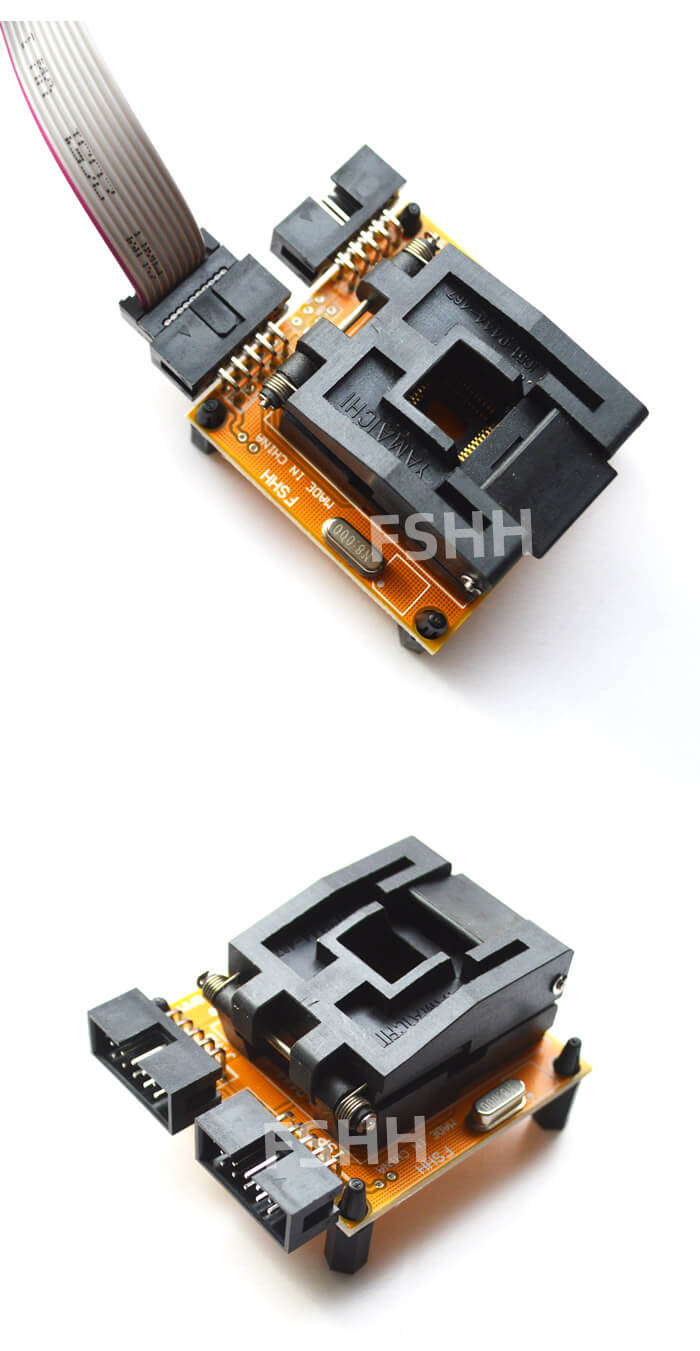

TQFP44 / QFP44 With ISP interface adapter X1
USB cable X1
Programmer support chip list:

ATMEL: ATmega48a ATmega48PA ATmega8 ATmega8515 ATmega8535 ATmega88A ATmega88PA ATmega16 ATmega162 ATmega163 ATmega165 ATmega168a ATmega168PA ATmega169 ATmega169p ATmega32 ATmega325 ATmega3250 ATmega328 ATmega328p ATmega329 ATmega3290 ATmega406 ATmega64 ATmega640 ATmega644 ATmega645 ATmega6450 ATmega649 ATmega6490 ATmega128 ATmega1280 ATmega1281 ATmega2560 ATmega2561

AT45DB011B AT45DB011D AT45DB021B AT45DB021D AT45DB041B AT45DB041D AT45DB081B AT45DB081D AT45DB161D AT45DB321B AT45DB321D AT45DB642B AT45DB642D

ATMEL: AT24C01; AT24C01A; AT24C01B; AT24C02; AT24C02A; AT24C02B; AT24C04; AT24C04A; AT24C04B; AT24C08; AT24C08A; AT24C08B; AT24C16; AT24C16A; AT24C16B; AT24C32; AT24C32A; AT24C32B; AT24C64; AT24C64A; AT24C64B; AT24C128; AT24C128A; AT24C128B; AT24C256; AT24C256A; AT24C256B; AT24C512; AT24C512A; AT24C512B; AT24C1024; AT24C1024A; AT24C1024B;
CATALYST: CAT24C01; CAT24C02; CAT24C04; CAT24C08; CAT24C16; CAT24C32; CAT24C64; CAT24C128; CAT24C256; CAT24C512; CAT24C1024;
CORIGHT: 24C01; 24C02; 24C04; 24C08; 24C16; 24C32; 24C64; 24C128; 24C256; 24C512; 24C1024;
FAIRCHILD: FM24C01; FM24C02; FM24C03; FM24C04; FM24C05; FM24C08; FM24C09; FM24C16; FM24C17; FM24C32; FM24C64; FM24C128; FM24C256; FM24C512; FM24C1024;
HOLTEK: HT24C01; HT24LC01; HT24C02; HT24LC02; HT24C04; HT24LC04; HT24C08; HT24LC08; HT24C16; HT24LC16; HT24C32; HT24LC32; HT24C64; HT24LC64; HT24C128; HT24LC128; HT24C256; HT24LC256; HT24C512; HT24C1024;
ISSI: IS24C01; IS24C02; IS24C04; IS24C08; IS24C16; IS24C32; IS24C64; IS24C128; IS24C256; IS24C512; IS24C1024;
MICROCHIP: 24AA00; 24FC00; 24LC00; 24AA01; 24FC01; 24LC01; 24AA02; 24FC02; 24LC02; 24AA04; 24FC04; 24LC04; 24AA08; 24FC08; 24LC08; 24AA16; 24FC16; 24LC16; 24AA32; 24FC32; 24LC32; 24AA64; 24FC64; 24LC64; 24AA128; 24FC128; 24LC128; 24AA256; 24FC256; 24LC256; 24AA512; 24FC512; 24LC512; 24AA1026; 24FC1026; 24LC1026;
NSC: 24C02; 24C02L; 24C64;
RAMTRON: FM24C04A; FM24CL04; FM24C16A; FM24CL16; FM24C64; FM24CL64; FM24C256; FM24CL256; FM24C512;
ROHM: BR24C01; BR24L01; BR24C02; BR24L02; BR24C04; BR24C04; BR24C08; BR24L08; BR24C16; BR24L16; BR24C32; BR24L32; BR24C64; BR24L64;
ST: ST24C01; ST24C02; ST24C04; ST24C08; ST24C16; ST24C32; ST24C64;
XICOR: X24C01; X24C02; X24C04; X24C08; X24C16;

ATMEL: AT25010; AT25020; AT25040; AT25080; AT25160; AT25320; AT25640; AT25128; AT25256; AT25512;
CATALYST: CAT25C01; CAT25C01P; CAT25C01S; CAT25C01U; CAT25C02P; CAT25C02S; CAT25C02U; CAT25C03P; CAT25C03S; CAT25C03U; CAT25C04P; CAT25C04S; CAT25C04U; CAT25C05P; CAT25C05S; CAT25C05U; CAT25C08P; CAT25C08S; CAT25C08U; CAT25C09P; CAT25C09S; CAT25C09U; CAT25C16P; CAT25C16S; CAT25C16U; CAT25C17P; CAT25C17S; CAT25C17U; CAT25C32P; CAT25C32S; CAT25C33P; CAT25C33S; CAT25C64P; CAT25C64S; CAT25C65P; CAT25C65S; CAT25C128P; CAT25C128S; CAT25C256P; CAT25C256S;
CORIGHT: 25C01; 25C02; 25C040; 25C080; 25C160; 25C320; 25C640; 25C128; 25C256;
MICROCHIP: 25AA040; 25AA080; 25AA160; 25AA128;
MICROCHIP: 25C040; 25LC040; 25C080; 25LC080; 25C160; 25LC160; 25AA320; 25C320; 25LC320; 25AA640; 25C640; 25LC640; 25LC128; 25LC256;
RAMTRON: FM25L04; FM25C160; FM25L16; FM25640; FM25CL64; FM25L256;
ST: M95010; ST25C01; ST25W01; M95020; ST25C02; ST25W02; M95040; ST25C04; ST25W04; M95080; ST25C08; ST25W08; M95160; ST25C16; ST25W16; M95320; M95640; M95128; M95256; M95512;
TI: TI2532; TI2532A; TI2564;
XICOR: X25010; X25020; X25040; X25080; X25160; X25320; X25640; X25128; X25256; X25512;
RAMTRON:FM25L04 FM25C160 FM25L16 FM25640 FM25CL64 FM25V01 FM25L256 FM25V02 FM25V05 FM25V10 FM25V20

ACE: ACE93C46-16bit; ACE93C46-8bit;
ATC: ATC93C46-16bit; ATC93C46-8bit; ATC93C56-16bit; ATC93C56-8bit; ATC93C66-16bit; ATC93C66-8bit; ATC93C86-16bit; ATC93C86-8bit;
ATMEL: 93C46-16bit; 93C46-8bit; 93C56-16bit; 93C56-8bit; 93C66-16bit; 93C66-8bit; 93C76-16bit; 93C76-8bit; 93C86-16bit; 93C86-8bit;
CATALYST: CAT93C46-16bit; CAT93C46-8bit; CAT93C56-16bit; CAT93C56-8bit; CAT93C57-16bit; CAT93C57-8bit; CAT93C66-16bit; CAT93C66-8bit; CAT93C86-16bit; CAT93C86-8bit;
CORIGHT: 93C06; 93C46-16bit; 93C46-8bit; 93C56-16bit; 93C56-8bit; 93C66-16bit; 93C66-8bit; 93C76-16bit; 93C76-8bit; 93C86-16bit; 93C86-8bit;
EXEL: XL93C06; XL93C46; XL93CS46; XL93LC46; XL93C56; XL93LC56; XL93C66; XL93LC66;
FAIRCHILD: FM93C06; FM93C46; FM93C46A-16bit; FM93C46A-8bit; FM93C56; FM93C56A-16bit; FM93C56A-8bit; FM93C66; FM93C66A-16bit; FM93C66A-8bit; FM93C86A-16bit; FM93C86A-8bit;
HOLTEK: HT93LC46-16bit; HT93LC46-8bit; HT93LC56-16bit; HT93LC56-8bit; HT93LC66-16bit; HT93LC66-8bit;
ISSI: IS93C46; IS93C46A-16bit; IS93C46A-8bit; IS93C56; IS93C56A-16bit; IS93C56A-8bit; IS93C66; IS93C66A-16bit; IS93C66A-8bit; IS93C76A-16bit; IS93C76A-8bit; IS93C86A-8bit;
MICROCHIP: 93C06; 93AA46-16bit; 93AA46-8bit; 93C46-16bit; 93C46-8bit; 93C46A; 93C46B; 93LC46-16bit; 93LC46-8bit; 93LC46A; 93LC46B; 93AA56-16bit; 93AA56-8bit; 93C56-16bit; 93C56-8bit; 93C56A; 93C56B; 93LC56-16bit; 93LC56-8bit; 93LC56A; 93LC56B; 93AA66-16bit; 93AA66-8bit; 93C66-16bit; 93C66-8bit; 93C66A; 93C66B; 93LC66-16bit; 93LC66-8bit; 93LC66A; 93LC66B; 93AA76-16bit; 93AA76-8bit; 93C76-16bit; 93C76-8bit; 93LC76-16bit; 93LC76-8bit; 93AA86-16bit; 93AA86-8bit; 993C86-16bit; 93LC86-16bit; 93LC86-8bit; 993C86-8bit;
NSC: 93C06; 93CS06; 93C46; 93CS46; 93C56; 93CS56; 93C66; 93CS66; 93C86; 93CS86;
ROHM: BR93LC46; BR93LC46RF; BR93LC56; BR93LC56RF; BR93LC66; BR93LC66RF;
SEIKO: S-93C46A; S-93C56A; S-93C66A;
ST: ST93C06; M93S46; M93S46R; M93S46W; ST93C46; M93S56; M93S56R; M93S56W; ST93C56; M93S66; M93S66R; M93S66W; ST93C66;

AMIC: A25L05PT; A25L05PU; A25L512; A25L010; A25L10PT; A25L10PU; A25L020; A25L20PT; A25L20PU; A25L040; A25L40P; A25L080; A25L80P; A25L016; A25L16PT; A25L16PU; A25L032;
ATMEL: AT25F512; AT25F512A; AT25F512B; AT25F1024; AT25F1024A; AT25FS010; AT25DF021; AT25F2048; AT25FS020; AT25DF041A; AT25F4096; AT25FS040; AT26F004; AT26DF081A; AT25DF161; AT26DF161; AT26DF161A; AT25DF321; AT25DF321A; AT26DF321; AT25DF641;
CHINGIS: Pm25LD256C; Pm25LD512; Pm25LD512C; Pm25LQ512A; Pm25LD010; Pm25LD010C; Pm25LQ010A; Pm25LD020; Pm25LD020C; Pm25LQ020A; Pm25LD040; Pm25LD040C; Pm25LQ040A; Pm25LQ080; Pm25LQ016; Pm25LQ032C;
CORIGHT: 25P05; 25P10; 25P20; 25P40; 25P80; 25P16; 25P32; 25P64; 25P128;
EON: EN25B05; EN25B05T; EN25F05; EN25LF05; EN25P05; EN25B10; EN25B10T; EN25D10; EN25F10; EN25LF10; EN25P10; EN25B20; EN25B20T; EN25D20; EN25F20; EN25LF20; EN25P20; EN25B40; EN25B40T; EN25D40; EN25F40; EN25LF40; EN25P40; EN25B80; EN25B80T; EN25D80; EN25F80; EN25P80; EN25Q80A; EN25T80; EN25B16; EN25B16T; EN25D16; EN25F16; EN25P16; EN25Q16; EN25Q16A; EN25T16; EN25B32; EN25B32T; EN25F32; EN25P32; EN25Q32A; EN25Q32B; EN25B64; EN25B64T; EN25F64; EN25P64; EN25Q64; EN25F128; EN25Q128;
ESMT: F25L004A; F25L004AT; F25L04UA; F25L008A; F25L008AT; F25L08PA; F25L016A; F25L016AT; F25L16PA; F25L32PA; F25L32QA;
EXCELSEMI: ES25P10; ES25P20; ES25M40; ES25M40A; ES25P40; ES25M80; ES25M80A; ES25P80; ES25M16; ES25M16A; ES25P16; ES25P32;
FM: FM25F005; FM25F01; FM25F02; FM25F04; FM25FQ32;
GIGADEVICE: GD25Q512; GD25Q10; GD25Q20B; GD25Q40B; GD25Q80B; GD25Q16B; GD25Q32B; GD25Q64B; GD25Q128B; GD25Q128C;
MICRON: M25P05; M25P10; M25P20; M25P40; M25P80; M25P16; M25P32; N25Q032; M25P64; N25Q064; M25P128; N25Q128; N25Q128A; N25Q256A;
MXIC: MX25L512; MX25V512; MX25L1005; MX25L2005; MX25L4005A; MX25V4005; MX25V4035; MX25L8005; MX25V8005; MX25V8035; MX25L1605D; MX25L1606E; MX25L1633E; MX25L1635D; MX25L3205D; MX25L3206E; MX25L3225D; MX25L3235D; MX25L3237D; MX25L6405D; MX25L6406E; MX25L12805D; MX25L12835E; MX25L12845E; MX25L25635E; MX25L25735E;
NEXFLASH: NX25P10; NX25P20; NX25P40; NX25P80; NX25P16; NX25P32;
PMC: PM25LV512; PM25LV010; PM25LV020; PM25LV040; PM25LV080B; PM25LV016B;
SAIFUN: SA25F005; SA25F010; SA25F020; SA25F040; SA25F080; SA25F160; SA25F320;
SPANSION: S25FL004A; S25FL008A; S25FL016A; S25FL032A; S25FL064A; S25FL128S; S25FL256S; S25FL512S;
SST: SST25LF512A; SST25VF512; SST25VF512A; SST25LF010A; SST25VF010; SST25VF010A; SST25LF020A; SST25VF020; SST25VF020A; SST25VF020B; SST25LF040A; SST25VF040; SST25VF040A; SST25VF040B; SST25LF080A; SST25VF080; SST25VF080A; SST25VF080B; SST25VF016B; SST25VF032B; SST25VF064C;
ST: M25P05; M25P05A; M25P10; M25P10A; M25PE10; M25P20; M25P20A; M25PE20; M25P40; M25P40A; M25PE40; M25P80; M25P80A; M25PE80; M25PX80; M25P16; M25PE16; M25PX16; M25P32; M25PX32; M25P64; M25PX64; M25P128;
WINBOND: W25P10; W25X10; W25X10A; W25X10AL; W25X10L; W25P20; W25Q20; W25X20; W25X20A; W25X20AL; W25X20L; W25P40; W25Q40; W25X40; W25X40A; W25X40AL; W25X40L; W25P80; W25Q80; W25X80; W25X80A; W25X80AL; W25X80L; W25P16; W25Q16; W25X16; W25P32; W25Q32; W25X32; W25Q64; W25X64; W25Q128; W25Q256;

Weight 0.35 kg

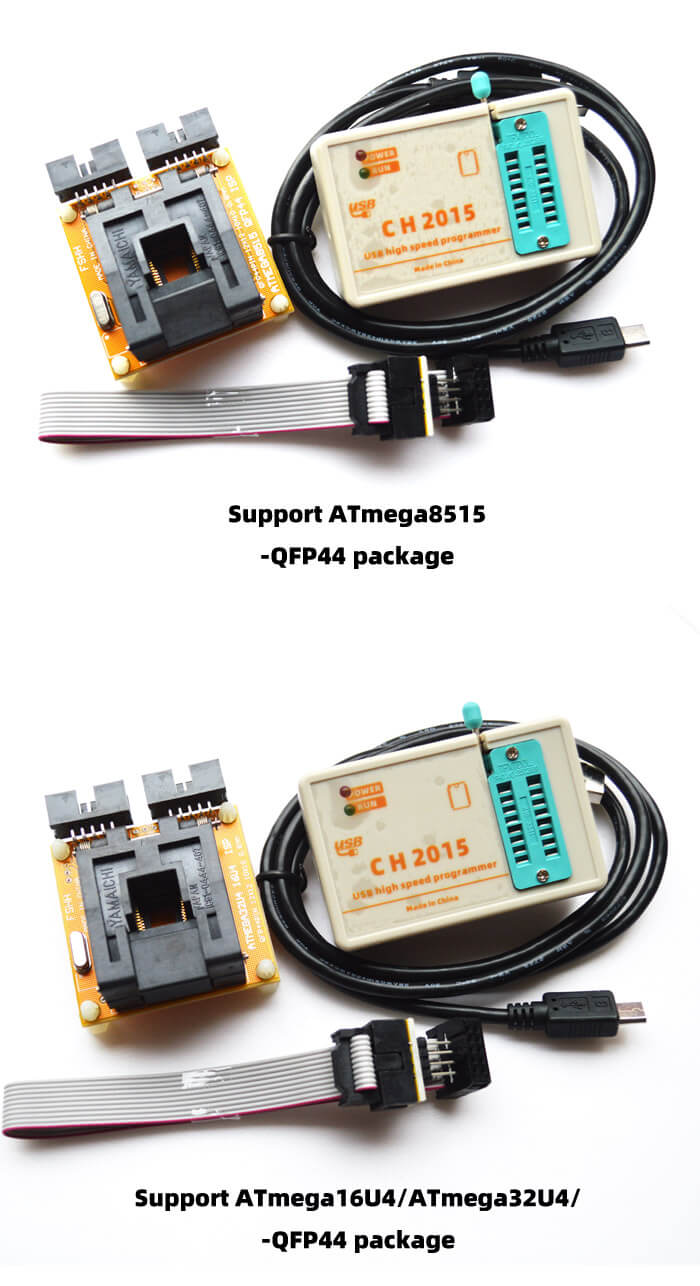

CH2015+QFP44(A), CH2015+QFP44(B), CH2015+QFP44(mega16u4 mega32u4), CH2015+QFP44(mega8515)
